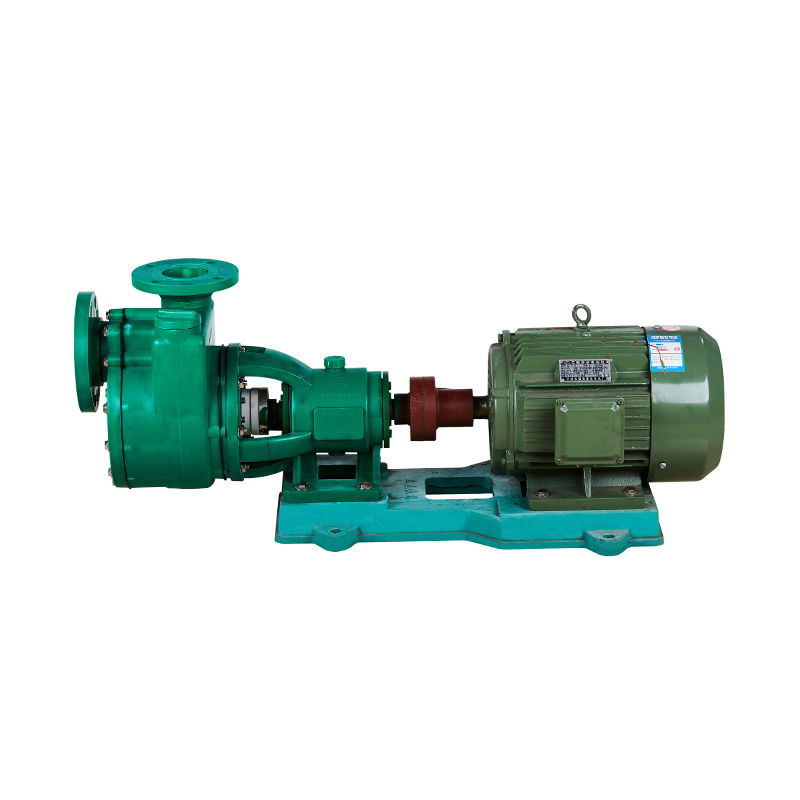

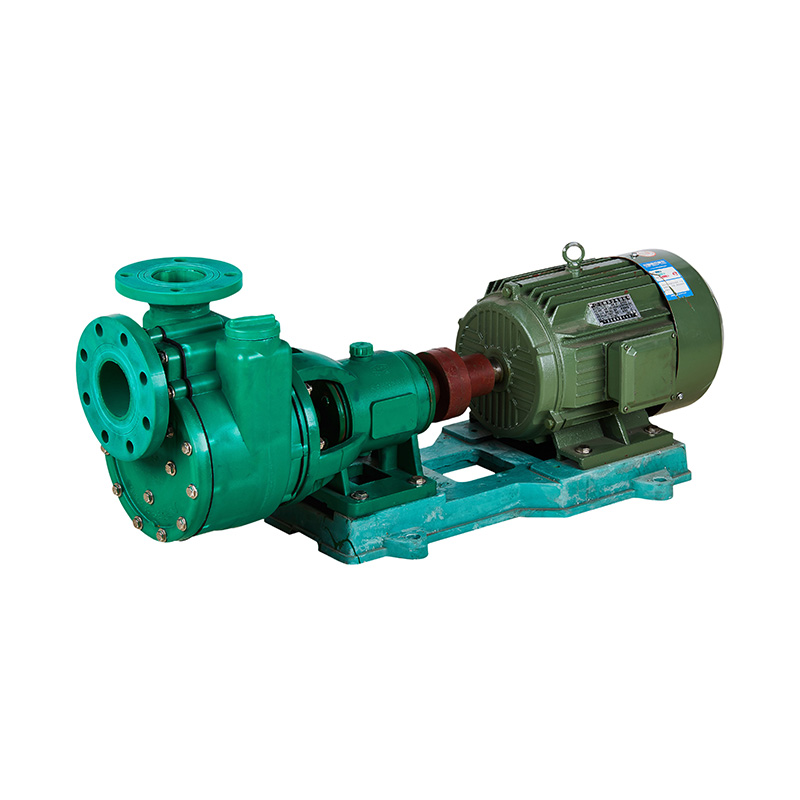

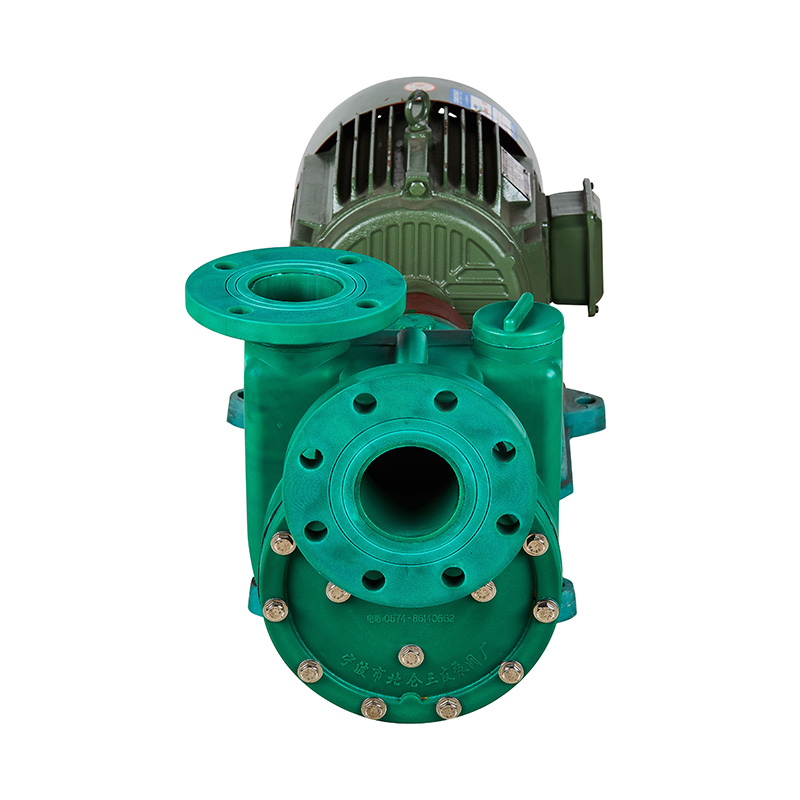

FPZ Shaft Type Self-Priming Pump

FPZ Shaft Type Self-Priming Pump

FP Series Corrosion Resistant Shaft Type Self priming Pump Plastic RPP Chemical Diesel Monoblock Axis Joint Type Self-Priming Pump for Chemical and Industry Use

Brand Name:KXPV

Place of Origin:Zhejiang, China

Pressure:High Pressure

Structure:Shaft Type Centrifugal Pump

Product name:Centrifugal Pump

Type:Shaft

Size:40FPZ-25(3KW)--- 100FPZ-32(15kw)

Delivery time:7 Days

MOQ:1piece

Power:Electric

Usage:Industry

Application:Chemical

Supply Ability:10000 Piece/Pieces per Month

0086 180 6712 3173 Contact Us
  • Description
  • Additional Information
  • PVDF&FRPP Pumps Specification

    Our factory specializes in the production of four series (FV, FP, FVZ, FPZ) of the four series (FV, FP, FVZ, FPZ) of PVDF and FRPP centrifugal pump and the self-priming pump.The PVDF pump is suitable for strong acid, strong oxidizer, halogen, aromatic hydrocarbons, chemical media such as fat, chlorinated solvents, practical temperature to-40 ° C to + 140 ° C . The FRPP pump is suitable for strong alkali, acid & alkali salts and its derivatives commonly.For secondary pump drive general Y type energy-saving motor, and it’s operating temperature is -40 ° C —+90 ° C .The explosion proof motor only supplied with according requisition.With special requirements for flow, lift, rotating speed and power, our factory can provide technical service to meet customer's requirement

    PUMP TYPE

    Centrifugal Pump/Self-Priming Pump Flow Graph

    Installation Maintenance



    1.After long-distance transportation,the pump should be checked before installation , whether the parts of pump machine are intact, the fasteners are loose, and should be re-tightened to check the concentricity of the shaft of the pump shaft and motor shaft. If there is any loose,it should be corrected.The pump should be check before installation especially for the spare parts; shaft connection and locks should be a djusted on the right position tightly.
    2.The pump body is all PVDF and FRPP resin injection molding,so the inlet and outlet pipe lines should have support or suspension structure, should not be supported only by the joint flanges. The inlet pipeline should not have more than 2pcs 90° elbow. The FP, FV type centrifugal pump shall be installed at the front end of the suction tube to ensure that the pump is filled with liquid before starting the pump.The suction nozzle or the bottom valve shall be installed with a strainer, or a strainer shall be installed at the inlet to prevent the sundries from being sucked into the pump and ensure that the pump can function properly.
    3.All connection should be tight and without leakage of air, otherwise the pump will not working properly and give the designed flow and lift.



    Self-Priming Pump

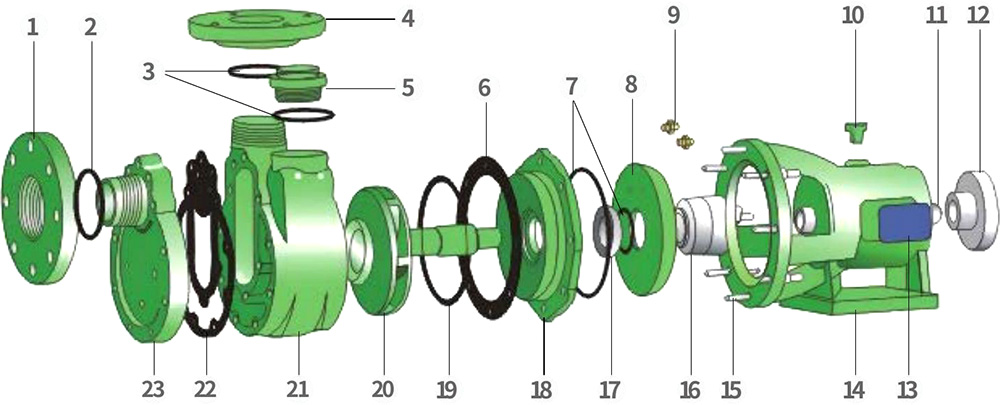

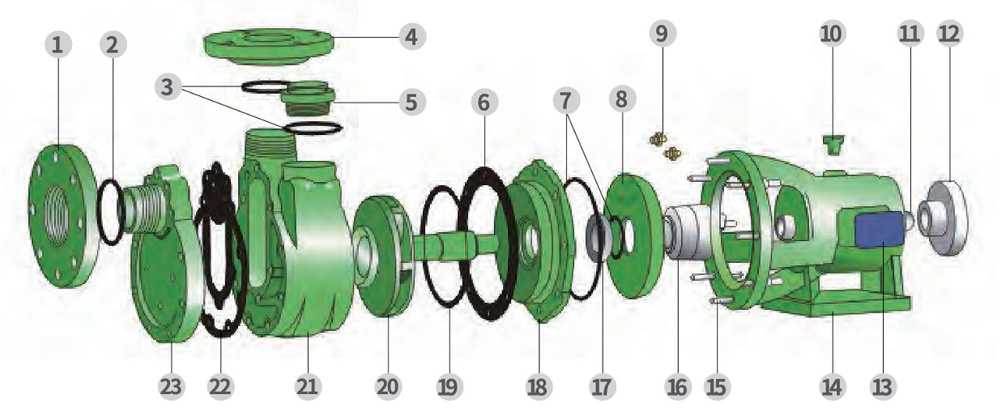

    Shaft Connection Type Self-priming Pump Assembly Detail Drawing

    Part Material Table
    No. Name Material
    1 Inlet flange FRPP.PVDF
    2 Ring EPDM.FPM
    3 Ring EPDM.FPM
    4 Pump body FRPP.PVDF
    5 Fluid injectin lid FRPP.PVDF
    6 Seal film EPDM.FPM
    7 Ring EPDM.FPM
    8 Cools the lid FRPP.PVDF
    9 Cooling water cover Steel
    10 Oil-hole plug FRPP
    11 Carrying axle Steel
    12 Coupling Cast iron
    13 Date plate Aluminum
    14 Suppot FRPP/ PVDF
    15 Double headed stud Steel,Stainless steel
    16 The mechanical seal moves Sic
    17 Mechanical seal static link Sic
    18 Back cover FRPP.PVDF
    19 Ring EPDM.FPM
    20 Impeller shaft FRPP/ Steel PVD /Steel
    21 Self-priming pump pump body FRPP.PVDF
    22 Door EPDM.FPM
    23 Front cover FRPP.PVDF
    Fpv Self-Priming Pump

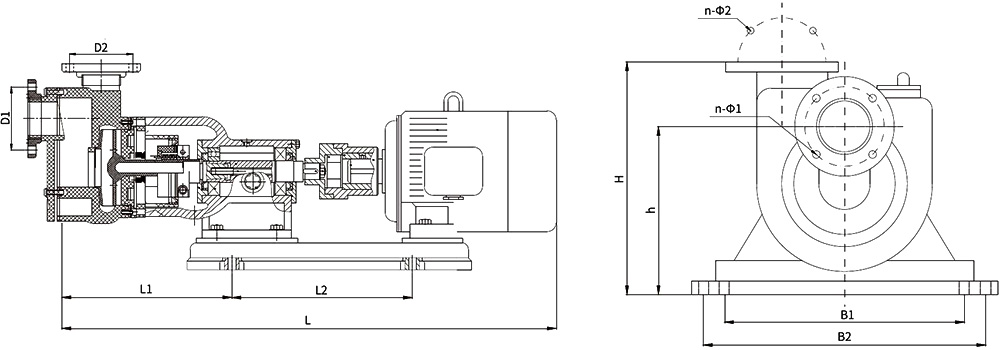

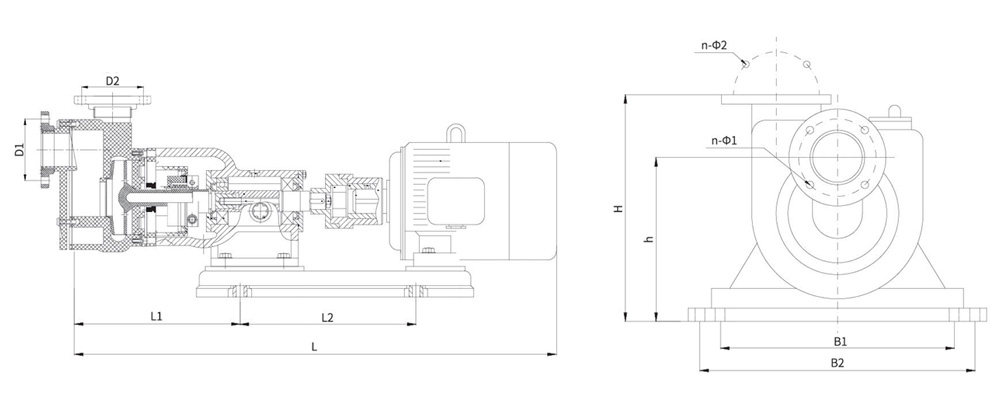

    DIMENSION LIST              UNIT：mm

    Type/
    Dimension

    Installed size

    Inlet flange

    Pump body

    L

    LI

    L2

    H

    h

    B1

    B2

    D1

    n-Φ1

    D2

    n-Φ2

    40F

    		 p Z-25

    800

    280

    400

    360

    260

    240

    335

    110

    4-Φ18

    100

    4-Φ18
    v

    50F

    		 p Z-28

    900

    280

    400

    360

    260

    240

    335

    125

    4-Φ18

    110

    4-Φ18
    v

    80F

    		 p Z-30

    1000

    575

    435

    400

    300

    250

    340

    160

    8-Φ18

    145

    4-Φ18
    v

    80F

    		 p Z-32

    1000

    575

    435

    400

    300

    250

    250340

    160

    8-Φ18

    145

    4-Φ18
    v
    Spectification

    Type

    1.00 Specific gravity of medium（P)1.00

    Flow
    （m3
    /h）

    Lift(m)

    Suction range(m)

    Import and export diameter（mm）

    Motor power (kw)

    Overall weight (kg)

    Connection Type

    25F

    		 p (D)-8A

    1.00

    3

    8



    32X25(Bundling）

    0.55

    15

    Direct Connection Type
    v

    32F

    		 p (D)-11A

    1.00

    4

    11



    32X25(Bundling）

    0.75

    15
    v

    32F

    		 p (D)-11B

    1.35

    4

    8



    32X25(Bundling）

    1.1

    15
    v

    40F

    		 p (D)-18A

    1.88

    7.5

    18



    40X32(Bundling）

    3

    30
    v

    40F

    		 p

    (D)-18B

    1.00

    11

    18



    40X32(Bundling）

    1.5

    30
    v

    40F

    		 p (D)-18C

    1.35

    11

    18



    40X32(Bundling）

    2.2

    30
    v

    50F

    		 p (D)-20A

    1.00

    18

    20



    50X40

    2.2

    37
    v

    50F

    		 p (D)-20B

    1.35

    13

    20



    50X40

    3

    37
    v

    65F

    		 p (D)-25A

    1.00

    20

    25



    65X50

    4

    75
    v

    80F

    		 p (D)-30A

    1.00

    50

    30



    80X65

    5.5

    95
    v

    80F

    		 p (D)-32B

    1.00

    50

    32



    80X65

    7.5

    95
    v

    100F

    		 p (D)-20A

    1.00

    100

    20



    100X80

    11

    125
    v

    100F

    		 p (D)-32B

    1.00

    100

    40



    100X80

    15

    125
    v

    40F

    		 p -25A

    1.00

    11

    25



    40X32

    3

    48

    Shaft Connection Type
    v

    50F

    		 p -28A

    1.00

    18

    28



    50X40

    4

    75
    v

    65F

    		 p -26A

    1.00

    13

    26



    65X50

    4

    95
    v

    80F

    		 p -30A

    1.00

    20

    30



    80X65

    5.5

    100
    v

    80F

    		 p -32B

    1.00

    50

    32



    80X65

    7.5

    100
    v

    100F

    		 p -20A

    1.00

    100

    20



    100X80

    11

    192
    v

    100F

    		 p -32B

    1.00

    100

    40



    100X80

    15

    192
    v

    25F

    		 p

    FZ(D)-8A

    1.00

    3

    8

    4

    25X20 (束接）

    0.75

    17

    Direct Connection Type
    v

    32F

    		 p

    FZ(D)-11A

    1.00

    4

    11

    4

    32X25(束接）

    1.1

    18
    v

    40F

    		 p

    FZ(D)-18A

    1.00

    11

    18

    4

    40X32

    1.5

    60
    v

    40F

    		 p FZ(D)-18B

    1.35

    11

    18

    4

    40X32

    2.2

    60
    v

    40F

    		 p

    FZ(D)-18C

    1.88

    11

    15

    3.7

    40X32

    3

    60
    v

    50F

    		 p FZ(D)-20A

    1.00

    18

    20

    4

    50X40

    2.2

    68
    v

    50F

    		 p FZ(D)-20B

    1.35

    18

    20

    4

    50X40

    5.5

    68
    v

    50F

    		 p FZ(D)-20C

    1.88

    18

    20

    3.7

    50X40

    7.5

    68
    v

    80F

    		 p FZ(D)-30A

    1.00

    50

    30

    4

    80X65

    5.5

    90
    v

    80F

    		 p FZ(D)-32A

    1.00

    50

    32

    4

    80X65

    7.5

    90
    v

    40F

    		 p FZ-18A

    1.00

    10

    18

    4

    40X32

    1.5

    70

    Shaft Connection Type
    v

    50F

    		 p FZ-28A

    1.00

    18

    28

    4

    50X40

    2.2

    78
    v

    50F

    		 p FZ-28B

    1.35

    18

    28

    4

    50X40

    4

    78
    v

    80F

    		 p FZ-30A

    1.00

    50

    30

    4

    80X65

    5.5

    125
    v

    80F

    		 p FZ-32B

    1.00

    50

    32

    4

    80X65

    7.5

    125
    v

Watch overview
FPZ Shaft Type Self-Priming Pump

Carrying Your Dream To The World Quality is Life

We Are Leading Company In This Field, We Provide Specific Solutions For Our Every Customers
A corrosion resistant plastic self-priming pump is a type of pump that is designed to handle liquids that may be corrosive or otherwise harmful to metal pumps. The pump is made of plastic materials that are resistant to corrosion, such as polypropylene (PP), PVC, PVDF, and PPH, among others. The self-priming feature allows the pump to start pumping liquid even when the suction line is not filled with liquid, this is done by creating a vacuum in the pump inlet, that allows the pump to start pumping even when the suction line is dry.
These types of pumps are often used in industrial and commercial applications, such as in chemical processing, pharmaceutical production, water treatment, and other environments where corrosion resistance is required. They can handle a wide variety of liquids, including acids, alkalis, and other chemicals. They are also suitable for use in high-temperature and high-pressure applications.
The corrosion-resistant plastic materials used in the construction of the pump make it resistant to corrosion and chemical attack, the self-priming feature makes the pump suitable for applications where the suction lift is not enough to start the pump, for example when the pump has to pull water from below the liquid level.
