FRP Clad Pipe DN15-600

Wholesale Custom Reinforced Polymer Mortar Pipe FRP/CPVC/UPVC Composite Pipe Fittings for water and construction usage

Place of Origin:Zhejiang, China

Brand Name:KXPV

Material:FRP/CPVC/UPVC

Standard:DIN

Packing:Plastic Film

Delivery Time:7 Days

MOQ:1 Piece

Supply Ability:100000 Meter/Meters per Month

0086 180 6712 3173 Contact Us

Description
Additional Information

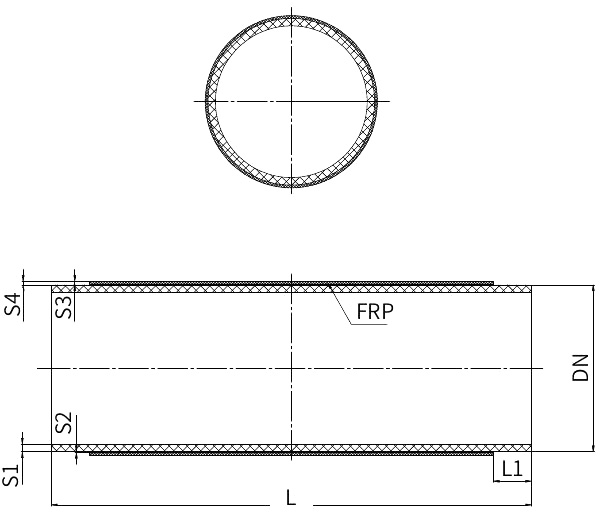

FRP Clad Pipe（PN1.0MPa）

Nominal diameterDN	Nominal PressureMPa	UPVC dn Nominal diameter of UPVC pipes	S2	UPVC Wall thickness of UPVC pipes and deviations S1		S3	S2+S3 ≈ S4		L (mm）	Reserved length L1
							S4 Tolerance
15	1.0	20	0.5	2.3+	0.5	2.5	3+	0.4	4000	44
					0			0
20	1.0	25	0.5	2.5+	0.5	2.5	3+	0.4	4000	47
					0			0
25	1.0	32	0.5	2.5+	0.5	2.5	3+	0.4	4000	50
					0			0
32	1.0	40	0.5	2.7+	0.5	2.5	3+	0.4	4000	55
					0			0
40	1.0	50	0.5	3.1+	0.6	3	3.5+	0.5	4000	56
					0			0
50	1.0	63	0.5	3.6+ 0	0.7	3	3.5+	0.5	4000	58
					0			0
65	1.0	75	0.5	3.8+	0.7	3	3.5+	0.5	4000	66
					0			0
80	1.0	90	0.5	4.3+	0.9	3	3.5+	0.5	4000	72
					0			0
100	1.0	110	0.5	4.8+	1.0	3	3.5+	0.6	4000	82
					0			0
125	1.0	140	0.5	6.1+	1.2	3.5	4+	0.6	4000	96
					0			0
150	1.0	160	0.5	7.9+	1.4	3.5	4+	0.6	4000	106
					0			0
200	1.0	225	0.5	9.7+	1.5	3.5	4+	0.6	4000	140
					0			0
250	1.0	280	0.5	12.2+	1.7	4	4.5+	0.7	4000	166
					0			0
300	1.0	315	0.5	13.6+	1.9	4	4.5+	0.7	4000	184
					0			0
350	1.0	355	0.5	14.8+	2.0	5	5.5+	0.8	4000	204
					0			0
400	1.0	400	0.5	15.3+	2.1	5	5.5+	0.8	4000	226
					0			0
500	1.0	500	0.5	19.1+	2.1				4000	280
					0
600	1.0	630	0.5	24.1+	2.1				4000	350
					0

Note: The size S of the composite pipe can be fine-tuned by the supplier and the buyer through negotiation.

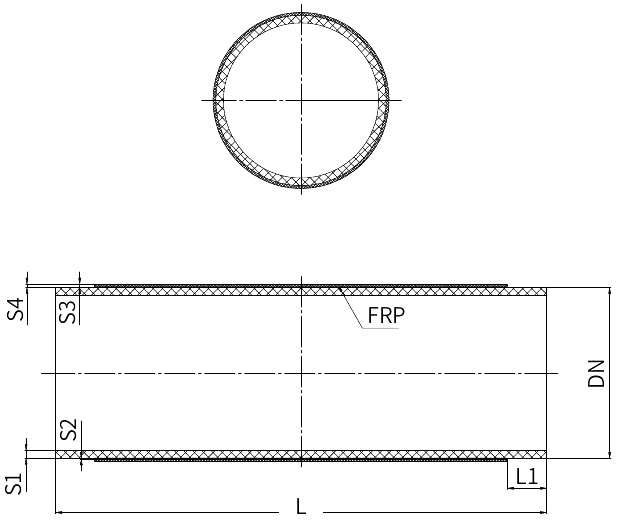

FRP Clad Pipe（PN1.6MPa）

Nominal diameterDN	Nominal PressureMPa	Nominal diameter dn	Tolerance	UPVC Wall thickness of UPVC pipes and deviations S1		S3	S2+S3 ≈ S4		L (mm）	Reserved length L1
							S4 tolerance
15	1.6	20	+0.2 0	2.5+	0.5	3	3+	0.5	4000	44
					0			0
20	1.6	25	+0.2 0	2.5+	0.5	3	3+	0.5	4000	47
					0			0
25	1.6	32	+0.2 0	2.8+	0.5	3	3+	0.5	4000	50
					0			0
32	1.6	40	+0.2 0	3.0+	0.5	3	3+	0.5	4000	55
					0			0
40	1.6	50	+0.2 0	3.5+	0.6	3	3.5+	0.5	4000	56
					0			0
50	1.6	63	+0.3 0	4.5+	0.7	3	3.5+	0.5	4000	58
					0			0
65	1.6	75	+0.3 0	5.3+	0.7	3	3.5+	0.5	4000	66
					0			0
80	1.6	90	+0.3 0	6.4+	0.9	3	3.5+	0.5	4000	72
					0			0
100	1.6	110	+0.4 0	7.8+	1.0	3	3.5+	0.6	4000	82
					0			0
125	1.6	140	+0.5 0	9.7+	1.2	3	4+	0.6	4000	96
					0			0
150	1.6	160	+0.5 0	11.0+	1.4	4	4+	0.6	4000	106
					0			0
200	1.6	225	+0.7 0	12.5+	1.5	4	4+	0.7	4000	140
					0			0
250	1.6	280	+0.9 0	14.0+	1.7	5.5	4.5+	0.8	4000	166
					0			0
300	1.6	315	+1.0 0	16.0+	1.9	5.5	4.5+	0.8	4000	184
					0			0
350	1.6	355	+1.1 0	17.0+	2.0	5.5	5.5+	0.8	4000	204
					0			0
400	1.6	400	+1.2 0	18.1+	2.1	5.5	5.5+	0.8	4000	226
					0			0

Note: The size S of the composite pipe can be fine-tuned by the supplier and the buyer through negotiation.

Watch overview

FRP Clad Pipe DN15-600

Carrying Your Dream To The World Quality is Life

We Are Leading Company In This Field, We Provide Specific Solutions For Our Every Customers

FRP (Fiberglass Reinforced Plastic) clad pipe is a type of pipe that has an outer layer made of fiberglass reinforced plastic (FRP) and an inner layer made of a different material, such as steel or plastic. The inner layer of the pipe is the structural support and is protected by the outer layer, which provides chemical resistance and corrosion protection.
FRP clad pipe is often used in industrial and commercial applications, such as in chemical and petrochemical plants, water and sewage treatment facilities, and other environments where corrosion resistance is required. The outer layer of FRP can protect the inner layer of the pipe from a wide range of chemicals, acids, and salts, making it ideal for use in harsh environments.
One of the main advantage of FRP Clad pipe is the corrosion resistance it provides, this feature makes it suitable for use in harsh environments and various types of liquids and gases. FRP Clad pipes are also lightweight, easy to install and have a long service life. They can also be manufactured to have specific properties such as electrical conductivity, fire resistance and more.
