The basic design of a Diaphragm Valve consists of a stem and diaphragm that sit in front of each other

Posted by Admin | 21 Feb
Diaphragm Valve
If you are in need of a throttling or on-off flow control valve, you may want to consider a Diaphragm Valve. They offer excellent chemical resistance and don't contain pockets for contamination. These valves are typically used in brewing, food processing, pharmaceutical applications, and more. Diaphragm valves can be operated manually or electrically. They are also low maintenance and come with a wide range of accessories.
The basic design of a Diaphragm Valve consists of a stem and diaphragm that sit in front of each other. A manual turning action or hydraulic fluid forces the stem against the diaphragm. As the diaphragm expands to the new depth, it blocks the piping. When it returns to its original position, fluid passes through it. The valve body and the piping are connected in two places, one on either side.
These valves are typically available in threaded and socket styles. The socket and threaded True Union types feature double EPDM material o-rings at each union port. The flow control, back pressure, and pressure relief series of Diaphragm Valve are available. Each series offers specific performance characteristics. The diaphragm material is made of a flexible elastomer. The elastomer material will determine the temperature and pressure rating.
The materials used for a Diaphragm Valve vary depending on the application. The materials must be chemically compatible with the material flowing through it. In addition to being chemically compatible, they must also be sanitized. Diaphragm valves are also available with antimicrobial materials lined inside the body. Diaphragm valves can be manufactured with various materials such as brass, cast iron, and PVC.
A Diaphragm Valve is a common choice for industrial and commercial applications. These valves are often used in water treatment and wastewater treatment systems, industrial processes, paintball guns, and other applications. Their fine-tuned design allows them to handle many commodity fluids. And they are easy to inspect. These valves also have a high-resistance seal, which means they are highly compatible with liquids and gases.
A Diaphragm Valve can be operated manually or electrically. Both manual and electric actuators have advantages and disadvantages. Manual actuators require the operator to exert force to open and close the valve, while electric actuators can increase opening and closing speeds and torques. A manual actuator can be equipped with lockability or stroke adjustment, but electric actuators use a motor to reduce speed and allow for reversible operation.
The Diaphragm Valve is available in manual/hand and pneumatic versions. They feature innovative designs and are made from high-grade stainless steel. They have a polished surface of 0.25 to 0.8 um, and are suitable for a variety of sterile processes. And thanks to their high-quality materials, they can be used in many industrial applications. The following information will help you choose the best Diaphragm Valve for your process.
To select a Diaphragm Valve, first determine its application. Determine the type of fluid the valve will be in and what its pressure should be. You can also use a diaphragm valve to control corrosive or caustic liquids. It is important to choose a diaphragm valve with the correct material properties for your particular application. And finally, ensure that the valve has all the safety measures necessary to ensure your safety.

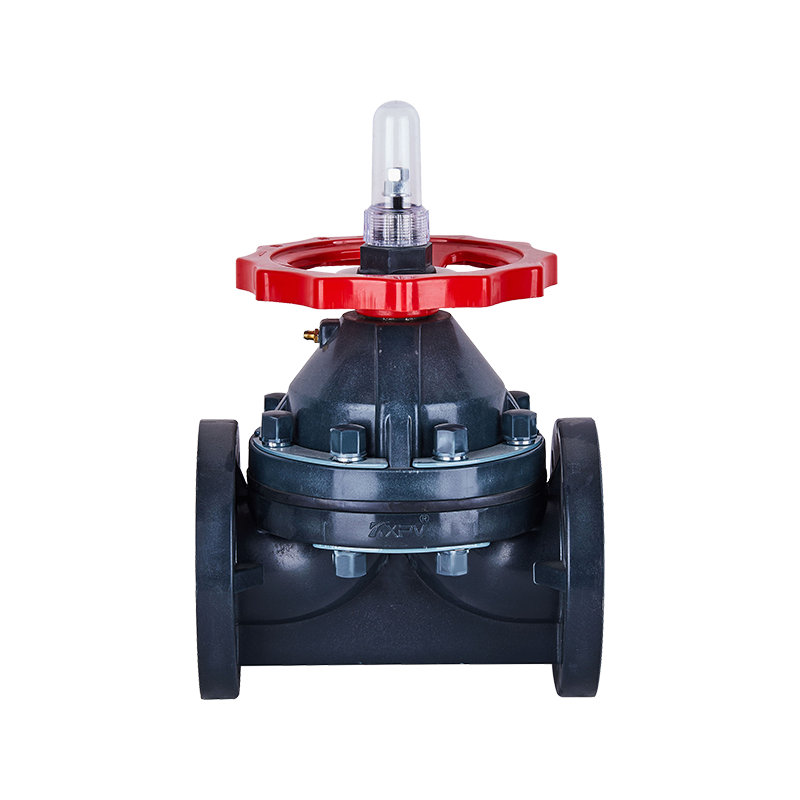

FRPP Flange Type Diaphragm Valve DN15-300

High Quality Factory Price Pressure Reducing Plastic FRPP Double Flange Ends 1 Way Diaphragm Valve

Size: DN15-DN250

Model Number: G41F-10V

Application: General

Material: Plastic

Temperature of Media: High Temperature, Medium Temperature

Pressure: Medium Pressure

Power: Manual

Media: Acid

Structure:Diaphragm

Product name: CPVC diaphragm valve

Connection: Flange Ends

Certificate: ISO9001

Working pressure: 0-10bar

Valve type: 1-way

Seal: EPDM+F46

Delivery Time: 7 Days

MOQ: 1 Piece
